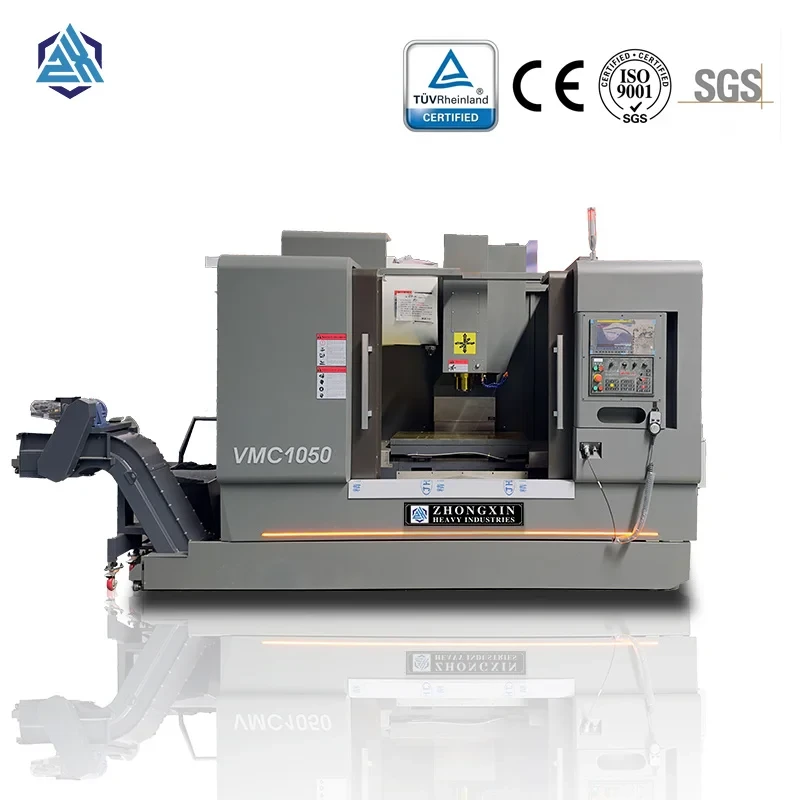

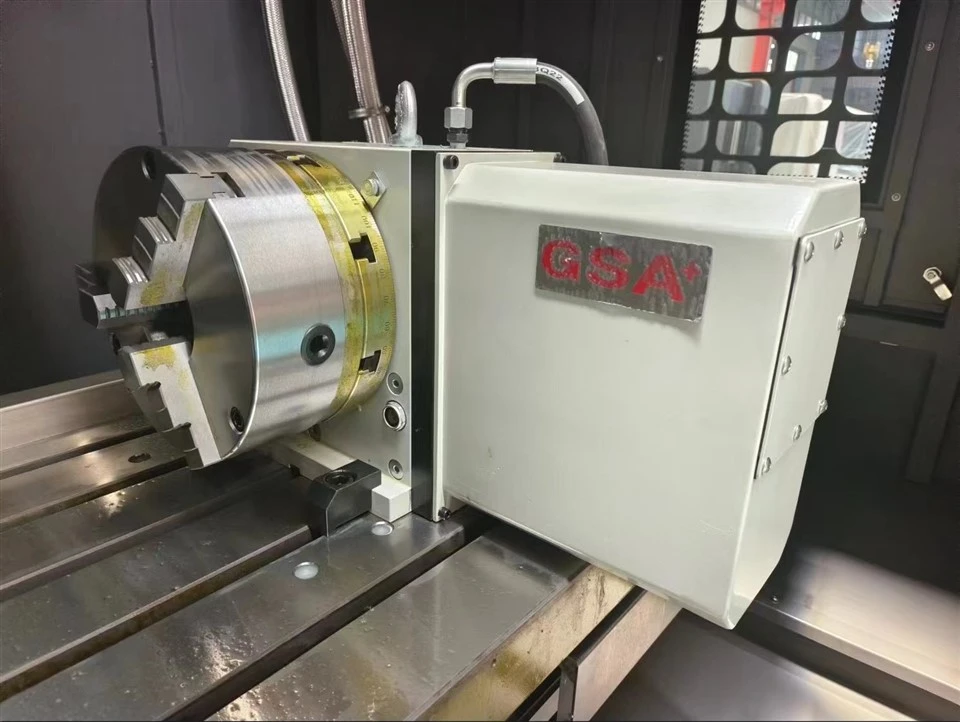

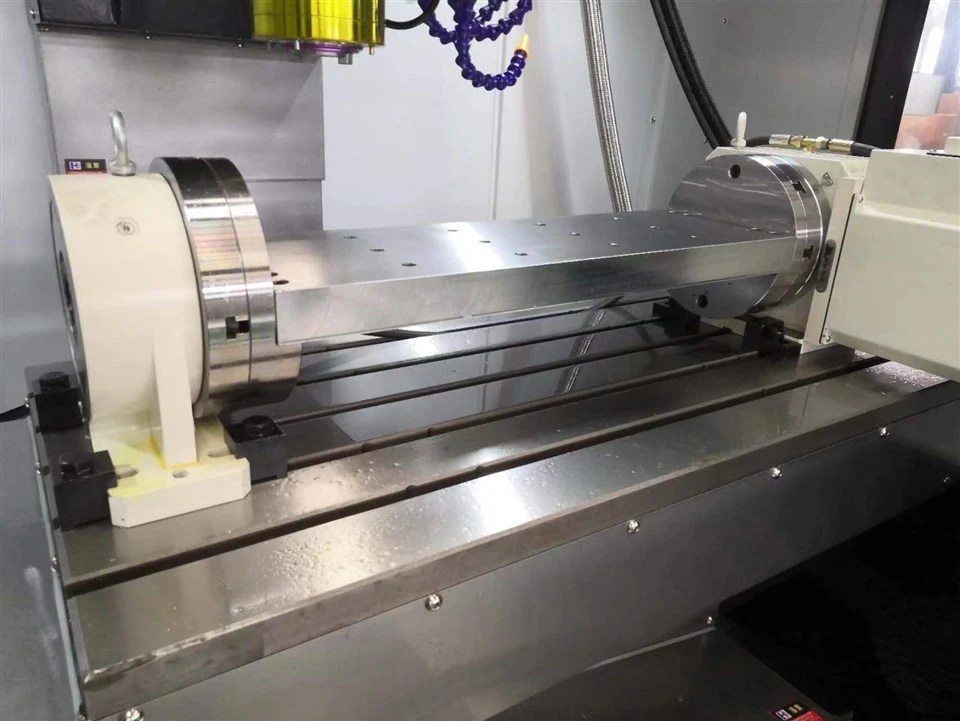

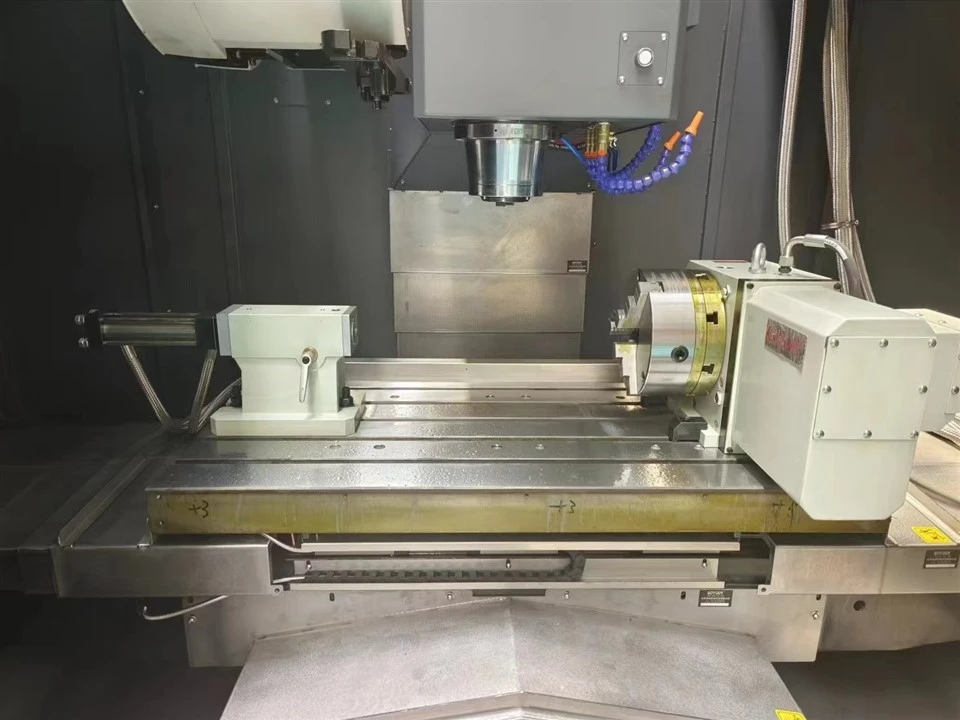

Tshiab CNC ntsug tshuab dhos

1. Nruas (Disk) Hom cuab yeej Magazine

Tool Axis Parallel rau Nruas Axis:

Cov cuab yeej tau teem caij radially lossis axially nyob ib ncig ntawm lub nruas / disk.

Cov qauv yooj yim, feem ntau siv rau me me - cov ntawv xov xwm muaj peev xwm (8–64 cov cuab yeej).

Kev txwv: Ntau lub nruas diameters ua rau muaj kev sib hloov inertia thiab lub sijhawm xaiv cov cuab yeej.

Kev ua kom zoo: Ob npaug - lossis ntau- nplhaib cov cuab yeej npaj txhim kho qhov chaw siv.

Tool Axis Inclined rau Nruas Axis:

Cov cuab yeej axis tsim lub kaum sab xis nrog lub nruas axis.

Txo manipulator complexity thaum lub sij hawm hloov cuab yeej.

Qhov tsis zoo: Cov hneev taw loj dua, txwv kev txhim kho yooj yim, thiab muaj peev xwm qis dua.

2. Chain-Type Tool Magazine

Qauv: Compact tsim nrog cov cuab yeej mounted ntawm servo-tsav saw.

Muaj peev xwm: Feem ntau 30–120+ cov cuab yeej.

Cov ntsiab lus tseem ceeb:

Tsav System: Servo motor + cab iav reducer (los yog iav).

Cov log tsheb: Hardened nto rau durability; dual tensioning log nrog cov lus qhia qhov chaw kom muaj kev sib tw.

Zero-Position Calibration:

Zero- txoj hauj lwm thaiv thiab sensor kom meej meej qhov chaw.

Tseem ceeb los tiv thaiv misalignment thaum lub sij hawm hloov cov cuab yeej robotic.

3. Daim phiaj (Lattice) Box-Type Tool Magazine

Tsau hom:

Cov cuab yeej tau teeb tsa hauv kab kab.

Cov cuab yeej xaiv los ntawm caj npab robotic nrog X / Y motion.

Qhov zoo: High space efficiency rau loj -cov ntawv xov xwm muaj peev xwm.

Tsis yog -Tsev Hom:

Modular tsim nrog ntau yam movable sub-magazines.

Sub-cov ntawv xov xwm tuaj yeem txuas ntxiv mus rau cov cuab yeej siv.

1. Disk-Type Tool Magazine

Cheebtsam:

Siab strips thiab bracket lub cev nrog countersunk qhov rau pillar alignment.

Thaum tshav kub kub -kho nuv claws thiab ib qho - daim moulded brackets.

Qhov zoo: Lub teeb yuag, nruj qauv, tsis tshua muaj nqi tsim khoom, thiab kev sib dhos yooj yim.

2. Chain-Type Tool Magazine

Ntsiab nta:

Tsav Mechanism: Servo lub cev muaj zog + cab iav reducer (kho rau torque / ceev).

Tensioning System: Qhia cov log nrog cov tawv tawv thiab kho qhov nro.

Zero-Txoj haujlwm:

Zero thaiv mounted ntawm txhua txoj haujlwm saw; sensor calibrated los kho cov cuab yeej teeb tsa ntawm qhov chaw tos neeg hlau.

Unidirectional homing (clockwise / counterclockwise ib tus qauv specifications).

Tool Positioning raug:

Misalignment thaum lub sij hawm nyob hauv tsev ua rau neeg hlau tuaj yeem ua yuam kev, ua rau muaj kev pheej hmoo ntawm kev sib tsoo.

Qhov tseeb xoom- txoj hauj lwm calibration yog qhov tseem ceeb rau kev ntseeg tau.

Tsim Trade- tawm:

Drum Magazines: Simplicity vs. txwv muaj peev xwm.

Chain Magazines: Muaj peev xwm ntau dua tab sis yuav tsum muaj kev nruj nruj thiab kev sib dhos.
